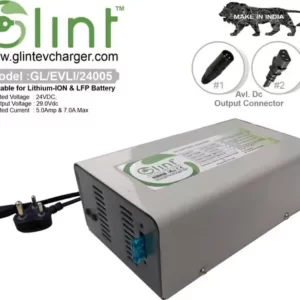

This product is a SMPS type 2-Wheeler E-Vehicle battery charger optimized for charging various Lithium chemistry like LFP and NCM battery packs. Various models are available in this series for charging.

Features:
Charging Current and Voltage profile optimized for Lithium LFP or NCMChemistry battery packs for 2Wheeler E-Vehicle applications.

Configurable for various charging voltages in the range of 24V to 72V.

450W Power Rating – Charging current range 7A depending on voltage setting.

High Efficiency to reduce Power Consumption from Mains.

Electronic Reverse Battery or Output Short Protection – enhanced safety.

Rugged extruded Sheet Metal with Powder Coated enclosure.

Specifications

Battery Pack Type :Lithium

MAX. CHARGING VOLTAGE :29V to 84V (As Per Model of Batterys)

MAX. CHARGING CURRENT :7Amp.

CHARGE PROFILE :CC CV

AC INPUT RANGE :180-300V AC , 40Hz to 60Hz

EFFICIENCY : >90%

COOLING SYSTEM :Forced Air Cooled

VISIUAL INDICATIONS (LED) :2 LED ( Red : Charging, Green : No Load or Charging Complete)

REVERSE BATTERY PROTECTION :NO

MAINS VOLTAGE PROTECTION :Withstand up to 320V AC RMS.

OVER CURRENT PROTECTION :By FUSE, in case of abnormal condition

OPERAT
