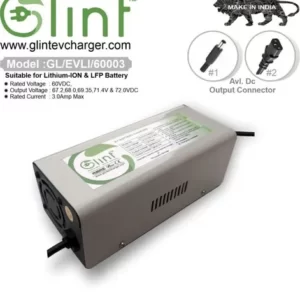

This product is a SMPS type 2-Wheeler E-Vehicle battery charger optimized for charging various Lithium chemistry like LFP and NCM battery packs. Various models are available in this series for charging.

Features:

• Charging Current and Voltage profile optimized for Lithium LFP or NCMChemistry battery packs for 2Wheeler E-Vehicle applications.
• Configurable for various charging voltages in the range of 67V to 72V.
• 250W Power Rating – Charging current range 3A depending on voltage setting.
• High Efficiency to reduce Power Consumption from Mains.
• Electronic Reverse Battery or Output Short Protection – enhanced safety.
• Rugged extruded Sheet Metal with Powder Coated enclosure.

Specifications

• Battery Pack Type :Lithium
• MAX. CHARGING VOLTAGE :67V to 72V (As Per Model of Batterys)
• MAX. CHARGING CURRENT :3A
• CHARGE PROFILE :CC CV
• AC INPUT RANGE :180-300V AC , 40Hz to 60Hz
• EFFICIENCY : >90%
• COOLING SYSTEM :Forced Air Cooled
• VISIUAL INDICATIONS (LED) :2 LED ( Red : Charging, Green : No Load or Charging Complete)
• REVERSE BATTERY PROTECTION :NO
• MAINS VOLTAGE PROTECTION :Withstand up to 320V AC RMS.
• OVER CURRENT PROTECTION :By FUSE, in case of abnormal condition
• OPERATING TEMPRATURE :0°C TO 45°C
