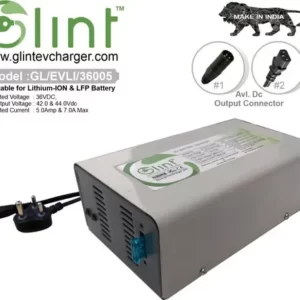

36V– 5A & 7A Lithium Battery Charger (Use For ELECTRIC BIKE)
|42.0 & 44.0 Vdc
|Number of Batteries Charged
|5Amp & 7Amp.
|Battery Type Charged
This product is a SMPS type 2-Wheeler E-Vehicle battery charger optimized for charging various Lithium chemistry like LFP and NCM battery packs. Various models are available in this series for charging.
Charging Current and Voltage profile optimized for Lithium LFP or NCM Chemistry battery packs for 2Wheeler E-Vehicle applications.
Configurable for various charging voltages in the range of 24V to 72V.
450W Power Rating – Charging current range 5A & 7A depending on voltage setting.
High Efficiency to reduce Power Consumption from Mains.
Electronic Reverse Battery or Output Short Protection – enhanced safety.
Rugged extruded Sheet Metal with Powder Coated enclosure.
Battery Pack Type :Lithium
MAX. CHARGING VOLTAGE :42.0V & 44.0V (As Per Model of Batterys)
MAX. CHARGING CURRENT :5A & 7A
CHARGE PROFILE :CC CV
AC INPUT RANGE :180-300V AC , 40Hz to 60Hz
EFFICIENCY : >90%
COOLING SYSTEM :Forced Air Cooled
VISIUAL INDICATIONS (LED) :2 LED ( Red : Charging, Green : No Load or Charging Complete)
REVERSE BATTERY PROTECTION :NO
MAINS VOLTAGE PROTECTION :Withstand up to 320V AC RMS.
OVER CURRENT PROTECTION :By FUSE, in case of abnormal condition
OPERATING TEMPRATURE :0°C TO 45°C
